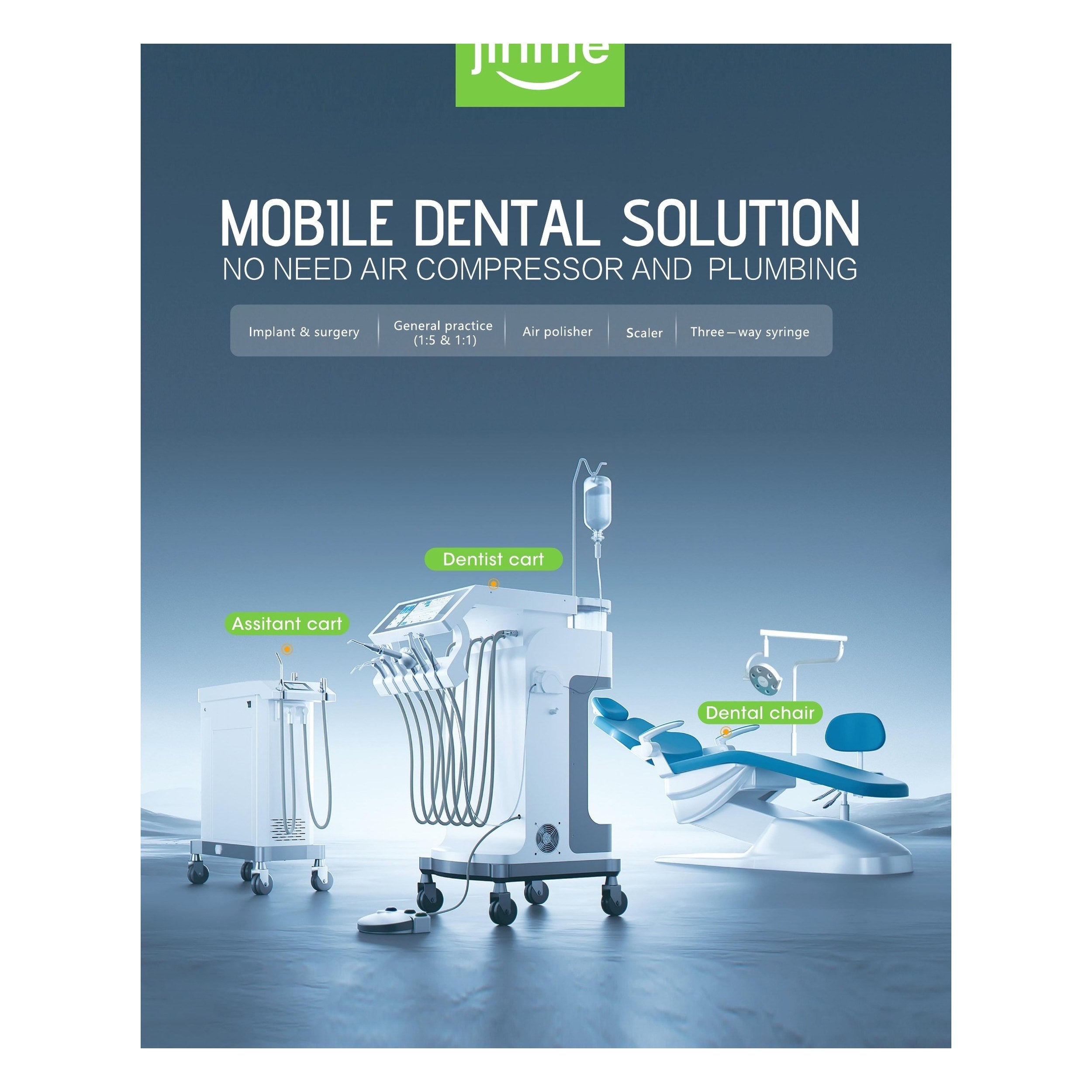

Jinme Mobile Dental System – No Compressor / No Plumbing

The Jinme Mobile Dental Solution is a complete portable dentistry system that operates entirely on electricity — no air compressor, no plumbing. Move it between operatories, satellite clinics, mobile dental units, mission trips, or long-term care facilities. Plug into a standard outlet, fill the water tank, and you're ready to treat patients with implant, restorative, periodontal, and surgical procedures.

What's Included

This package contains both carts required for a full mobile clinical setup: the DS70 Dentist Cart (handpieces, scaler, syringe, irrigation, controls) and the Suction 10 Assistant Cart (HVE/saliva suction with 10 L self-draining waste tank). Dental chair shown in marketing photos is NOT included.

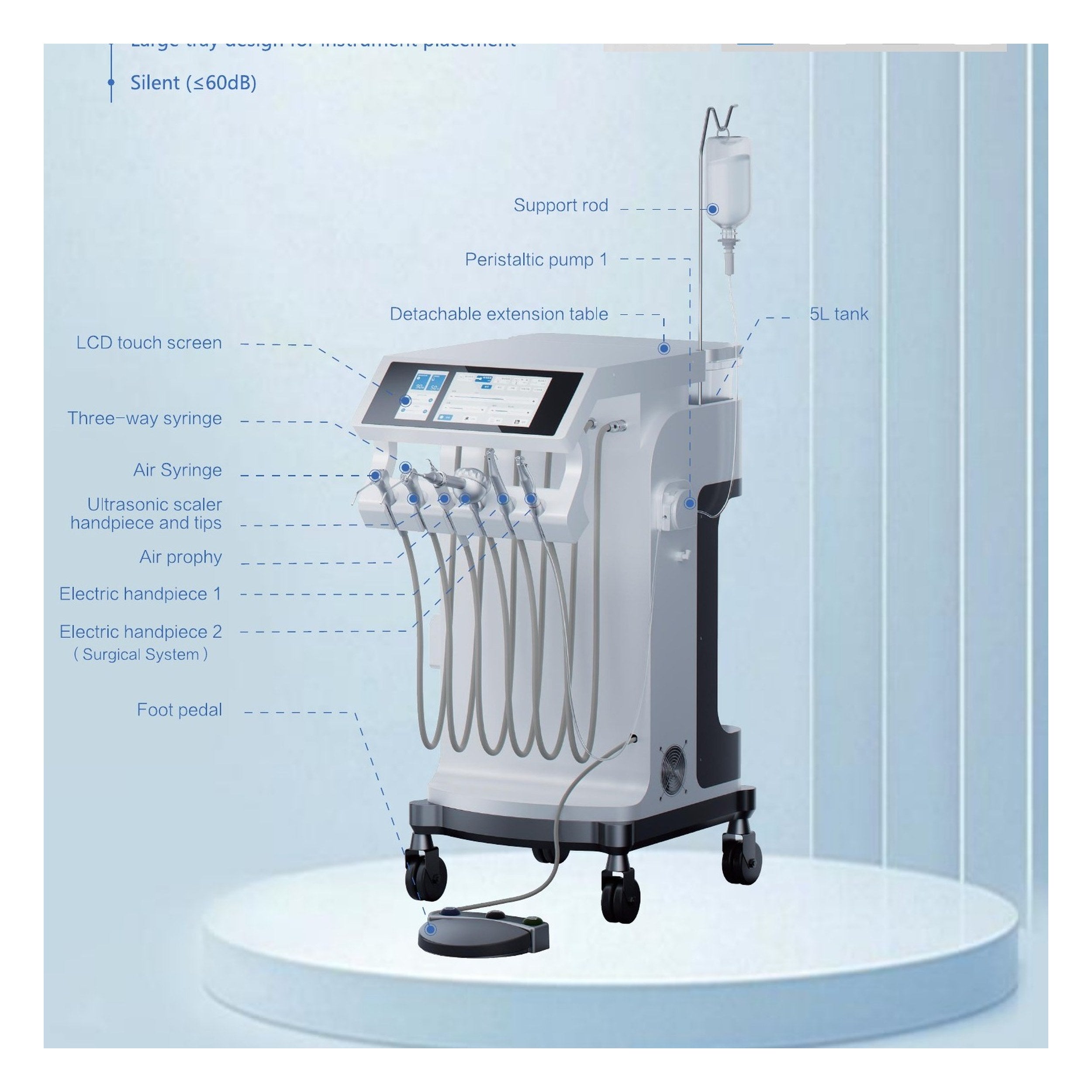

Dentist Cart (Model DS70) — Multi-Functions in One Device

• 5 integrated functions — Implant & surgery, General practice (1:5 & 1:1 handpieces), Air polisher, Ultrasonic scaler, Three-way syringe
• LCD touch-screen control — digital display of speed, water flow %, torque (N·cm), and mode
• Two electric handpiece motors — Motor 1 (general/restorative) + Motor 2 (surgical implant system)
• Peristaltic pump with support rod and IV bag holder for sterile saline irrigation during implant surgery
• 5 L fresh-water tank (distilled or purified water) with cooling flow ≥ 50 mL/min
• Detachable extension table ×2 — large tray for instruments
• Whisper-quiet operation ≤ 60 dB
• Electric driven, no air compressor required
• Foot pedal with foot-pedal hook

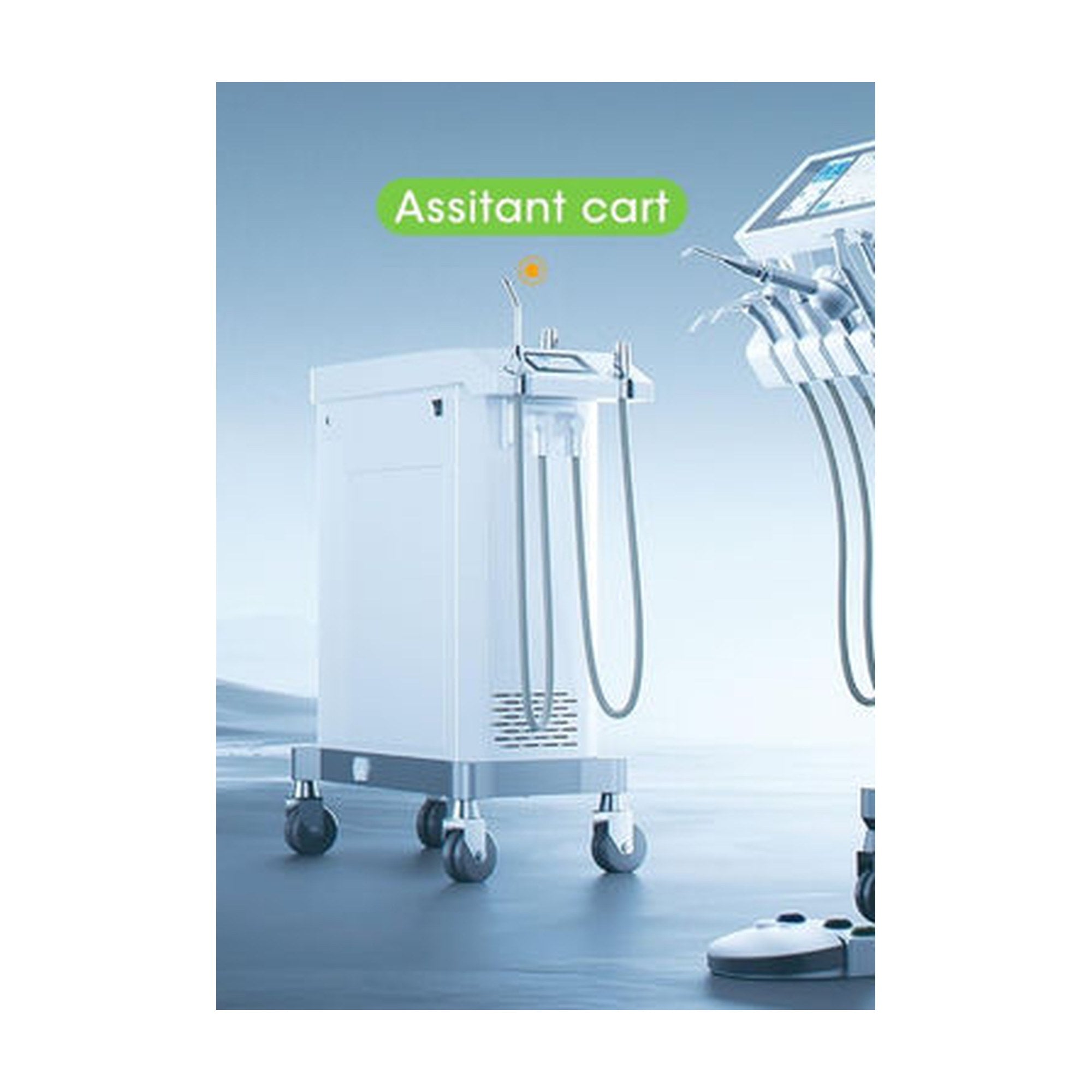

Assistant Cart (Model Suction 10) — Strong Suction, Self-Draining

• Piston-pump suction with ≥ 0.06 MPa ultimate negative pressure
• Pumping rate: Strong suction 10 L/min, weak suction 4.5 L/min
• 10 L sewage tank with automatic overflow protection
• Self-draining without electricity — no power needed for evacuation
• 2× high-performance suction hoses + 1× saliva suction hose included
• Whisper-quiet operation ≤ 60 dB

DS70 Dentist Cart Specifications

• Size: 650 (L) × 550 (W) × 910 (H) mm
• Net weight: 45 kg
• Input voltage: 110 / 220 VAC
• Rated current: 0.1–4 A
• Power fuse: 2× 250V T6.3AH
• Maximum power consumption: 400 VA
• Water tank size: 400 × 140 × 220 mm, 5 L capacity
• Cooling water flow at 100%: ≥ 50 mL/min
• Recommended coolant: distilled / purified water
• Maximum allowable suspension load: ≤ 1.5 kg

Suction 10 Assistant Cart Specifications

• Size: 720 (L) × 270 (W) × 820 (H) mm
• Net weight: 48.5 kg
• Input voltage: 110 / 220 VAC
• Rated current: 0.1–5 A
• Power fuse: 2× 250V T6.3AH
• Maximum power consumption: 500 VA
• Sewage tank size: 350 × 170 × 280 mm, 10 L capacity (auto overflow protection)
• Suction pump: piston pump
• Ultimate negative pressure: ≥ 0.06 MPa
• Pumping rate: Strong 10 L/min · Weak 4.5 L/min

Application Scenarios

• Plug-and-play mobile dentistry — only electricity required
• Multi-functional single machine replaces multiple traditional devices
• Portable / mobile dental treatment (mission trips, long-term care, in-home visits)
• Flexible left- or right-handed operation
• Satellite operatories, schools, military, charity dental events

Dentist Cart Packing List

1. Main Unit ×1
2. User Manual ×1
3. Power Cord ×1
4. Water Tank ×1
5. Guide Sleeve Plug ×1
6. Motor Handpiece 1 (with cable) ×1
7. Motor Handpiece 2 (with cable) ×1
8. Three-way Syringe (with cable) ×1
9. Foot Pedal (with foot-pedal hook) ×1
10. Support Rod ×1
11. Bracket ×1
12. Power Fuse 6.3AH 250V ×2
13. Certificate of Conformity ×1
14. Detachable Extension Table ×2
15. Ultrasonic Scaler Handpiece & Tips (optional add-on)
16. Air Prophy with cable (optional add-on)

Assistant Cart Packing List

1. Main Unit ×1
2. User Manual ×1
3. Power Cord ×1
4. High-performance Suction Hose ×2
5. Saliva Suction Hose ×1
6. Power Fuse 6.3AH 250V ×2
7. Certificate of Conformity ×1

Manufacturer: Guangdong JINME Medical Technology Co., Ltd. — Foshan, China.
